Machine Description
1. The production line supporting machinery in addition to marked materials are stainless steel, all machine structures are in accordance with food hygiene standards selected design;
2.The material contact with the container material are food grade SUS304;
3.Often dismantling the structure are easy to dismantle the connection, to ensure that the shift or change the product when dealing with health convenience;
4: The production line of the normal production needs 1-2 employees.
What Can Be Pack
It is suitable to use in packing all powder product materials. Such as: milk powder, flour powder, wheat powder, soda powder, chemical powder, detergent/washing powder, protein powder, maize/corn powder, spice powder, fertilizer, etc.
Packing sample bags
Machine Details
Crafting process:

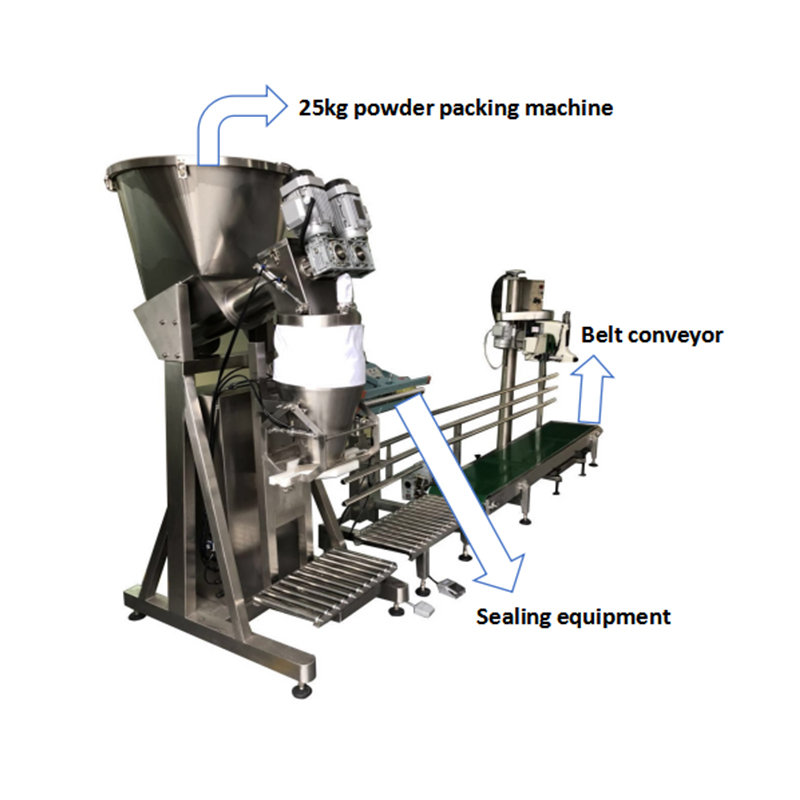

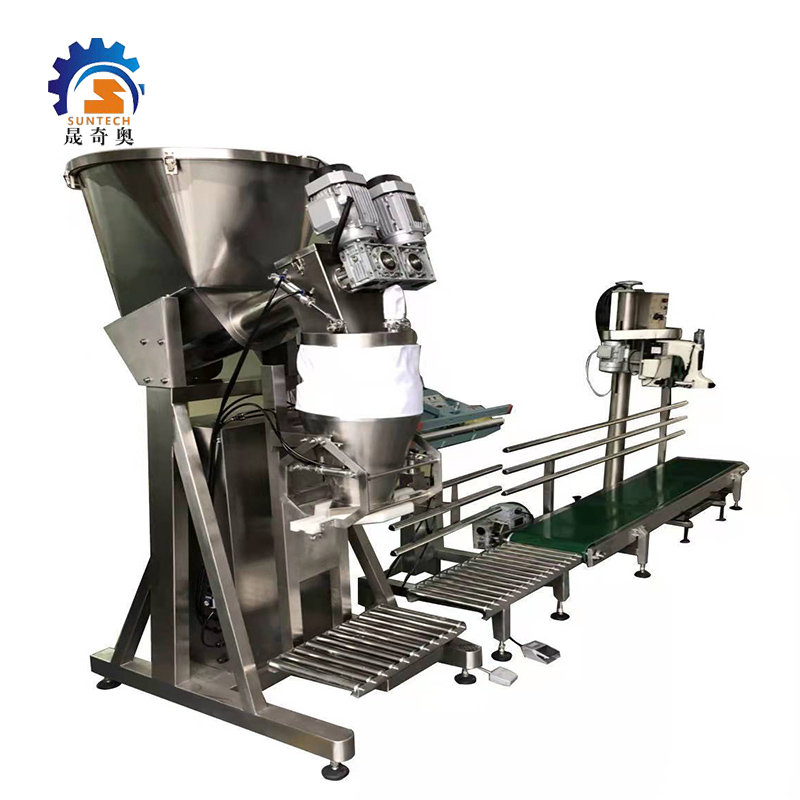

Screwing conveyor → 25kg powder packing machine → Sealing machine → Sewing machine → Belt conveyor
Technical Parameters:
l Product: powder
l Packing weight: 10~50kg
l Bag type: ready made bags
l Measurement accuracy: ≤±0.1%
l Machine frame and product touched material: SS304
|
Model
|
SUN-1C1
|
|
Measure Method
|
Weighing mode (Gross weight)
|
|
Feeding Mode
|
Double screw
|
|
Filling Weight
|
10-50kg
|
|
Packing Accuracy
|
±0.1%
|
|
Packing Speed
|
2-4 bags/min
|
|
Power Supply
|
220V/380V 50/60Hz 3 phases
|
|
Pressure
|
6-8kg/cm2 0.2m3/min
|
|
Total Power
|
3.9Kw
|
| Machine Weight |
280kg
|
Our Serivice
Pre-Sale Service:
We will according your product feature, packing weight of each bag, and shape of bag to make best quotation for you. Then more details we need communication such as materials and thickness of film rolls, dimension of bag you already have or need we design for you, Operate language, kind of voltage at the local.
After-Sale Service:
Warranty: 2 Years except wearing parts ( Cutter, Belt, Horizontal and vertical Heating Tube etc), Most of components are free-replacement (PLC, Servo controller, Servo motor, Touch screen, Cylinder). Machine delivery will with a tool box, there have some parts are free.
Operation training:
1: Machine is very easy operate, delivery with manual, offer lots of photos and videos when machine in assembling or disassembling.
2: Welcome to our factory learning.
3: Engineers available to service machinery overseas.
