Machine Description of Grain Packing Machine
SUN-420/520/720/820/1220 Packing machines are used in the consumer products industry for a wide variety of packaging applications. With Volumetric Filler Various products like rice, sugar, beans, coffee beans,sago,etc granule are placed into formed pouches and then sealed. The bag material is flexible and typically laminated film.
Fully automatic packing machines require limited operator intervention. The operator need only replenish product by loading supply hoppers,changing packaging film and bag former.
Multi Function : Feeding,Weighting,Filling,Bag forming,Date print and Sealing all in one.
√ Accuracy is very well. Dosing by Volumetric Filler;
√ PLC control system ,stable and reliable;
√ 5.7inch Schneider colorful touch screen;
√ The place touched by your products made of stainless steel 304, Easy to clean and maintance;
√Servo-motro and double belt driven film ;
What Can Be Pack
Good for packing rice , seeds , beans, nuts, grain , pet food , salt , detergent powder , etc non-fragile and granular pdoducts.
PS: Lot of shape of bag you choose.
Machine Details

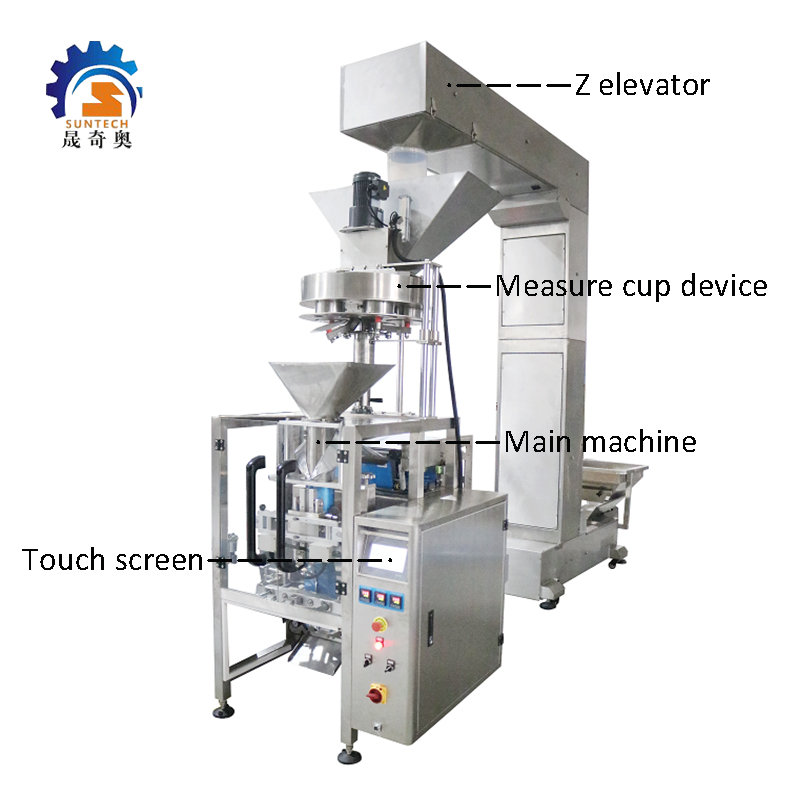

Simplified,Packaging Machine start with a large roll of film, form it into a bag shape,and products will be take with Z Type Elevator to Volumetric Filler for dosing. then fill the bag with product, and seal it, all in a vertical fashion, at speeds 5-70 bags per minute.
| Model |
SUN-320 |
SUN-420 |
SUN-520 |
SUN-720 |
| Measuring Range |
150 - 800ml |
150-1500ml |
150-2000mL |
150-4000ml |
| Packaging Speed |
5-70bags/min |
5-60bags/min |
10-50bags/min |
10-40bags/min |
| Bag Width |
50 -150mm |
60-200mm |
80-250mm |
100-350mm |
| Bag Length |
80 - 240mm |
80-300mm |
80-350mm |
100-450mm |
| Film Roll Width |
(L)1185*(W)935 *(H)1245mm |
(L)1217* (W)1015 *(H)1343mm |
(L)1488*(W)1080*(H)1490mm |
(L)1716*(W)1260*(H)1820mm |
| Machine Weight |
350KG |
450KG |
550KG |
700KG |
| Operate by Touch Screen |
Install The Film |
Date Printer |
| Date, Can Three line |
Tool Box (Free) |
Electric |
What is A Grain Packing Machine?
A grain packing machine is a type of equipment used for weighing, filling, and packaging different types of grains such as rice, wheat, corn, barley, and oats. The grain packing machinery is commonly used in the food processing industry to automate the process of packaging grains into bags, boxes, or containers.
How Does A Grain Packing Machine Work?
A grain packing machine typically consists of a weighing system, a filling system, and a packaging system. The weighing system accurately measures the grain before filling it into the packaging material, which can be a bag, box, or container. The filling system uses a conveyor or hopper to transfer the grain to the packaging system, where it is sealed and labeled.
How Can I Maintain My Grain Packing Machine?
To ensure optimal performance and longevity of your automatic grain packing machine, it's important to perform regular maintenance tasks such as cleaning, lubrication, and inspection. You should also follow the grain packing machine manufacturer’s recommendations for replacing worn or damaged parts and schedule periodic professional servicing.
