Liquid Packing Machine

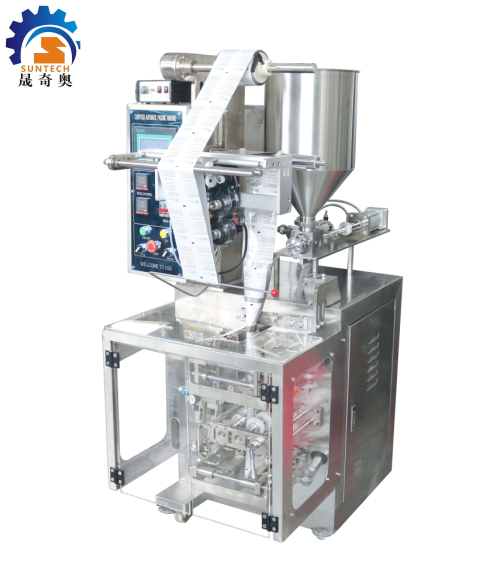

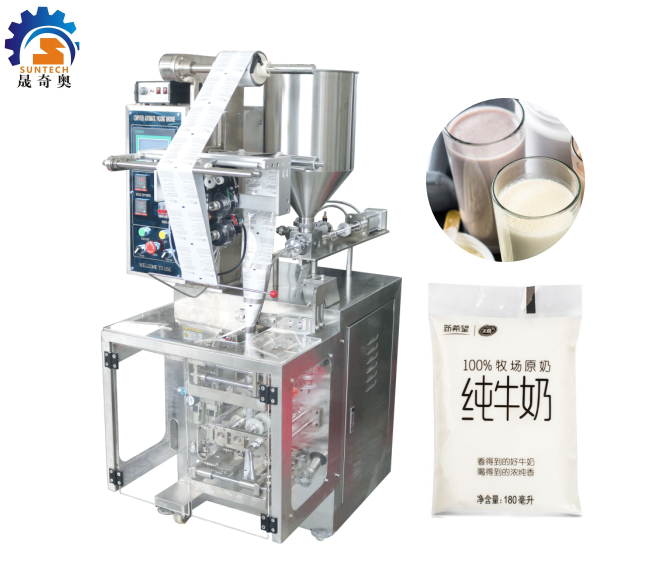

Advanced Design Fully Automatic 200ml Milk/Milchigs Liquid Vertical Packing Machine

Main features:
• The packing machine with advanced design, reasonable structure, fine workmanship, stable adjustment, quick and easy operation, simple maintenance, time-saving and labor-saving manpower.
• Servo film transporting system can position accurately. High-quality synchronous transport membrane, which is stable and reliable.
• High-precision color touch screen, convenient parameter setting.
• Self-diagnosis function, fault is displayed at a glance.
• High-sensitivity fiber color tracking, so that the sealing position more accurate.
• Temperature independent PID control, it's better for a variety of materials coated.



Pump:

Pump to dispense is set by a simple adjustment of the length of the piston stroke (the distance covered by the piston). The adjustment is performed by turning an small adjusting wheel located at table-top level. If the stroke is reduced the volume of dispensed product decreases. On the other hand, lengthening the piston stroke will result more product being dispensed. Once the set, the piston filler will dispense accurately and repeatedly. Two repeated cycles can be performed to fill volumes that are higher than the cylinder capacity.

Product Description

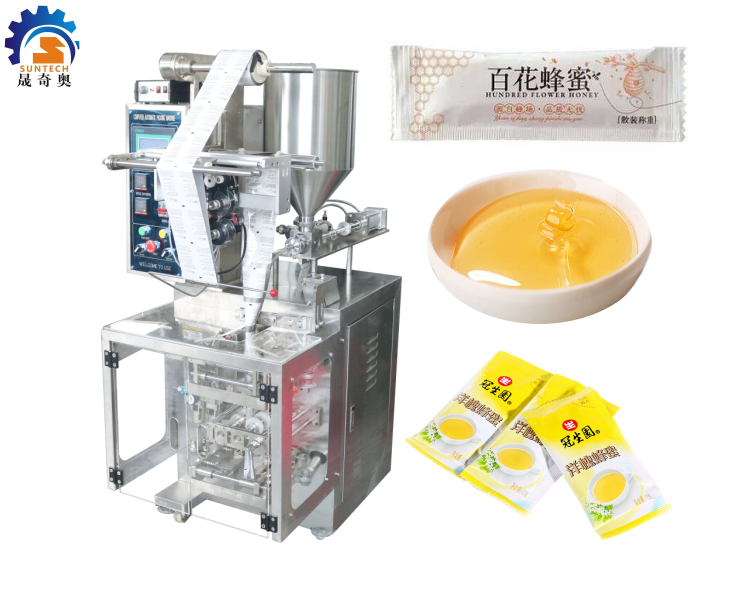

Automaitc Packing Machine is good for packing liquid products such as oil, water, sauce, juice, etc.

liquid filling machine



liquid filling machine

liquid packaging machine

Model

SUN-60L

Measuring Range

1-300ml

Packaging Speed

5-60bags/min

Bag Width

15-100mm

Bag Length

30-180mm

Max Film Roll Width

320mm

Machine Weight

200KG



liquid packaging machine





Our affordable, easy to use packaging machine are suitable for company wanting to automate their packaging processes for the first time or to the larger producer looking for more productivity and efficiency.

liquid packing machine price



liquid packing machine

liquid packing machine



How to Delivery

We use non fumigation pallets plywood cases to pack machines.

liquid packaging machine

Our Service

Pre-Sale Service:

 We will according your product feature, weight of each bag, and shape of bag make a quotation for you. Then more details we need communication such as material and thickness of film, dimension of bag you already have it or need we design for you, Operate language,what kind of voltage at the local.



 After-Sale Service:

Warranty: 1 Year except wearing parts ( Cutter, Belt, Horizontal and vertical Heating Tube etc), Most of components are free-replacement (PLC, Servo controller, Servo motor, Touch screen, Cylinder). Machine delivery will with a tool box, there have some parts are free.

Operation training:

1: Machine is very easy operate, delivery with manual, offer lots of photos and videos when machine in assembling or disassembling.

2: Welcome to our factory learning.

3: Engineers available to service machinery overseas.



About Suntech

liquid packaging machine

We has gained rich experience in the packing machinery field and has many mature technologies. So far, dozens of packaging machine series have been successfully developed to achieve the optimal matching of automatic weighing machines and packaging machines. It is widely used in Food, Beverage, Pharmaceutical ,Chemical, Hardware accessories and other industries. It is the preferred equipment to achieve production automation and improve production efficiency. At present, the products are exported to Europe, America, Middle East, Southeast Asia, Africa and other parts of the world, and are deeply trusted and praised by users.



We not only provide customers with high quality and reliable products, but also design and manufacture packaging equipment according to customers' actual requirements, provide packaging overall solutions, undertake various standard packaging machines OEM business, and provide professional technical service support for customers. To create greater value for customers.



"Strictly Abide by the Integrity, the Pursuit of Excellence", all the Suntech people must take it as their conviction and serve the customers wholeheartedly, warmly welcome customers at home and abroad to visit and guide, we hope to create brilliant success together with you!
