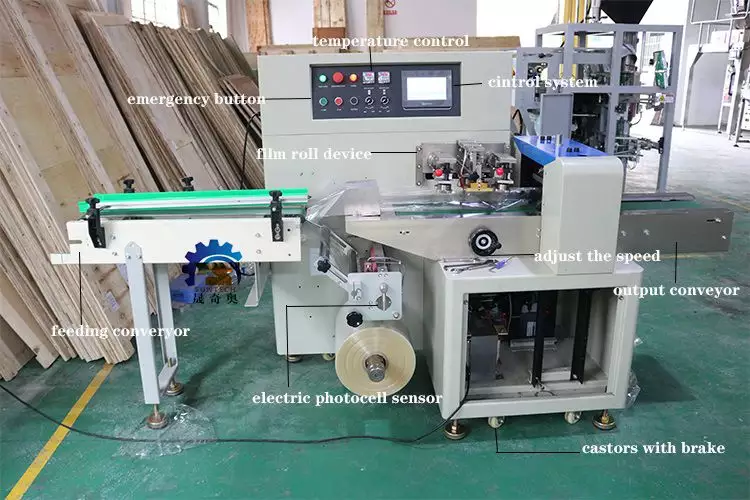

Feature
• It control by servo motors for flexible bag length cutting, operator needn't to adjust the unloading working, saving time and films.
• Human-machine operation, convenient and quick parameter setting.
• Self diagnosis failure function, clear failure display.
• High sensitivity optical electric color mark tracking ,digital input cut position which makes the sealing and cutting more accurate.
• Separate PID control to temperature, suitable for various packing materials.
• Stopping the machine in selected position, no sticking to the knife and no waste packing film.
Technical Parameters
Model |
SUN-250D |
SUN-350D |
SUN-450D |
Bagging size |
L: 65-190 or 120-280mm; W: 30-110mm; H: 5-70mm |
L: 60-190 or 120-320mm; W: 50-160mm; H: 5-70mm |
L: 130-320or 180-450mm; W: 50-185mm; H: 5-70mm |
Packing capacity |
40-230bags/min (air charging needed); 60-330bags/min (no air charging needed) |
30-200bags/min (air charging needed); 50-300bags/min (no air charging needed) |
30-180bags/min (air charging needed); 40-230bags/min (no air charging needed) |
Packing film width |
250mm |
350mm |
450mm |
Packing film |
Laminated film such as OPP/PE, OPP/CPP, etc. |
||
Power supply type |
220V 50Hz |
||
Total power |
3.5kw |
||
Machine weight |
800kg |
900kgs |
1000kg |
Machine dimensions |
3700*720*1450mm |
4200*950*1700mm |
4200*980*1800mm |
