Vertical Packing Machine

Low Noise Level 500g 800g 2kg Kodo Millet Rice Granular Gusset Bag Filling Packing Machine

This granular filling machine has an advanced linear weigher packing machine design, offering quick & easy operation, and saving both time and labor manpower.

Main features:
• The packing machine with advanced design, reasonable structure, fine workmanship, stable adjustment, quick and easy operation, simple maintenance, time-saving and labor-saving manpower.
• Servo film transporting system can position accurately. High-quality synchronous transport membrane, which is stable and reliable.
• High-precision color touch screen, convenient parameter setting.
• Self-diagnosis function, fault is displayed at a glance.
• High-sensitivity fiber color tracking, so that the sealing position more accurate.
• Temperature independent PID control, it's better for a variety of materials coated.



Linear Weigher Packing Machine | Granular Filling Machine - Suntech



Product Description

It is suitable to use in packing the high accuracy and easy fragile material. Such as: puffy food,chips, jelly, candy, pistachio nuts, nuts, apple slices, frozen dumpling, coffee beans, pasta,cotton candy, french fries, rice, pet food, small hardwares, etc.

Granular Filling Machine



Granular Filling Machine applications

Model

SUN-320 SUN-420 SUN-520 SUN-720

Packing Speed

5-60 Bags/Min

Volume(ML)

800

1000

2000

5000

Bag Width(MM)

50-150

60-200

80-250

150-350

Bag Length(MM)

80-200

80-300

80-400

80-450

Max Width Of Roll Film(MM)

320

420

520

720

Thickness

0.04-0.09 MM

Material

OPP/CPP PET/PE PET-AL/PE Lamination Film

Weight(KG)

350KG

450KG

550KG

750KG

Air Consumption

0.65Mpa 0.3m³/Min

0.65Mpa 0.4 m³/Min

0.8Mpa 0.4m³/Min

0.8Mpa 0.4m³/Min

Power Supply(KW)

2.2

2.2

2.2

3.0

Dimension LxWxH(MM)

1170X820X1285 1320X920X1392 1500X1140X1540 1800x1250x1780

Temperature Precision

±1℃

Weighing Precision

±0.5~±2.0g

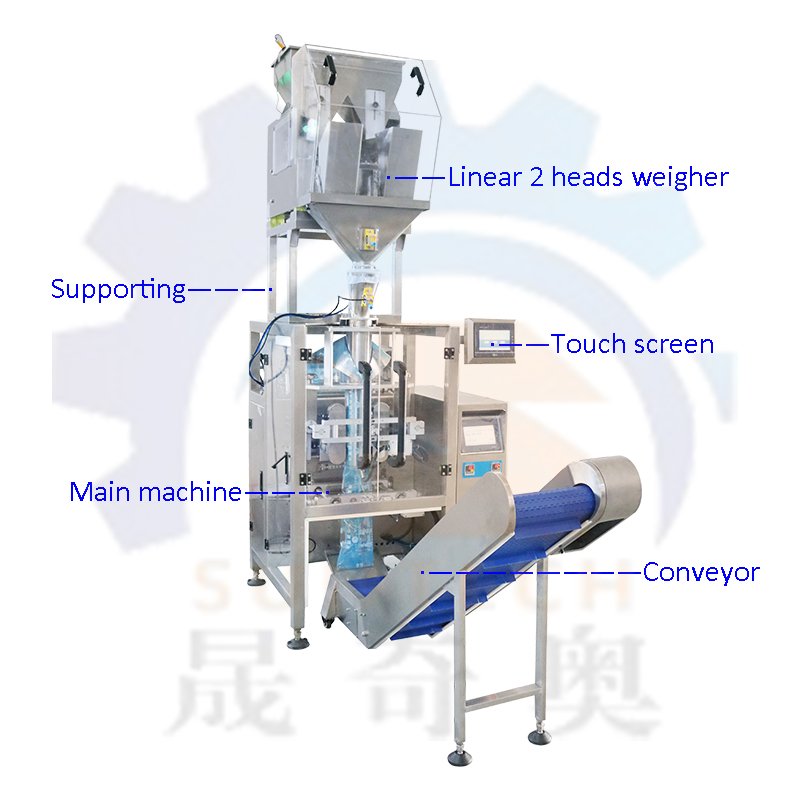

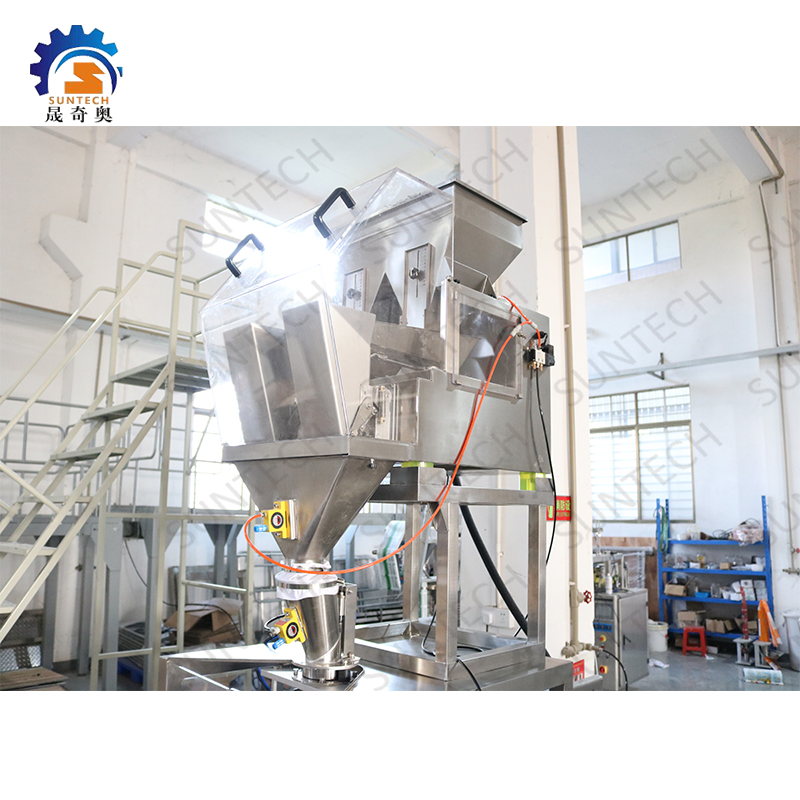

Linear Weigher Packing Machine

Granular Packing MachinePacking Machine For Granular



Our affordable, easy to use packaging machine are suitable for company wanting to automate their packaging processes for the first time or to the larger producer looking for more productivity and efficiency.

Linear Weigher Packing Machine

Granular Packaging Machine



doypack bag packing machine

food packing machine supplier



How to Delivery

We use non fumigation pallets plywood cases to pack machines.

packing machine factory

Our Service

Pre-Sale Service:

 We will according your product feature, weight of each bag, and shape of bag make a quotation for you. Then more details we need communication such as material and thickness of film, dimension of bag you already have it or need we design for you, Operate language,what kind of voltage at the local.



 After-Sale Service:

Warranty: 2 Years except wearing parts ( Cutter, Belt, Horizontal and vertical Heating Tube etc), Most of components are free-replacement (PLC, Servo controller, Servo motor, Touch screen, Cylinder). Machine delivery will with a tool box, there have some parts are free.

Operation training:

1: Machine is very easy operate, delivery with manual, offer lots of photos and videos when machine in assembling or disassembling.

2: Welcome to our factory learning.

3: Engineers available to service machinery overseas.



About Suntech

packing machine manufacturer

We has gained rich experience in the packing machinery field and has many mature technologies. So far, dozens of packaging machine series have been successfully developed to achieve the optimal matching of automatic weighing machines and packaging machines. It is widely used in Food, Beverage, Pharmaceutical ,Chemical, Hardware accessories and other industries. It is the preferred equipment to achieve production automation and improve production efficiency. At present, the products are exported to Europe, America, Middle East, Southeast Asia, Africa and other parts of the world, and are deeply trusted and praised by users.



We not only provide customers with high quality and reliable products, but also design and manufacture packaging equipment according to customers' actual requirements, provide packaging overall solutions, undertake various standard packaging machines OEM business, and provide professional technical service support for customers. To create greater value for customers.



"Strictly Abide by the Integrity, the Pursuit of Excellence", all the Suntech people must take it as their conviction and serve the customers wholeheartedly, warmly welcome customers at home and abroad to visit and guide, we hope to create brilliant success together with you!
