Machine Description
1. Multi Function: Feeding,Dosing,Filling,Bag forming,Date print and Sealing all in one.
2. Bag dimension is very good: The machine adopts with servo film driving system, PLC program control, Serson tracking, can make sure each bag dimension is very nice.
3.Sealing very well: Vertical and Horizontal sealing own itself temperature-controller and adjustable. That means bag sealing very well and flexible to film.
4: Easy operation: Color touch screen support multiple languages.
5: Reliable: Higher configuration Servo-Motor, PLC, and Touch Screen is Schneider.
Automaitc Packing Machine is good for packing liquid products such as oil, water, sauce, juice, etc.
Machine can be customized for other bag type.
Machine Details
Our affordable, easy to use packaging machine are suitable for company wanting to automate their packaging processes for the first time or to the larger producer looking for more productivity and efficiency.
| Model |
SUN-320 |
SUN-420 |
SUN-520 |
SUN-720 |
| Measuring Range |
150 - 800ml |
150-1500ml |
150-2000mL |
150-4000ml |
| Packaging Speed |
5-70bags/min |
5-60bags/min |
10-50bags/min |
10-40bags/min |
| Bag Width |
50 -150mm |
60-200mm |
80-250mm |
100-350mm |
| Bag Length |
80 - 240mm |
80-300mm |
80-350mm |
100-450mm |
| Film Roll Width |
(L)1185*(W)935 *(H)1245mm |
(L)1217* (W)1015 *(H)1343mm |
(L)1488*(W)1080*(H)1490mm |
(L)1716*(W)1260*(H)1820mm |
| Machine Weight |
350KG |
450KG |
550KG |
700KG |

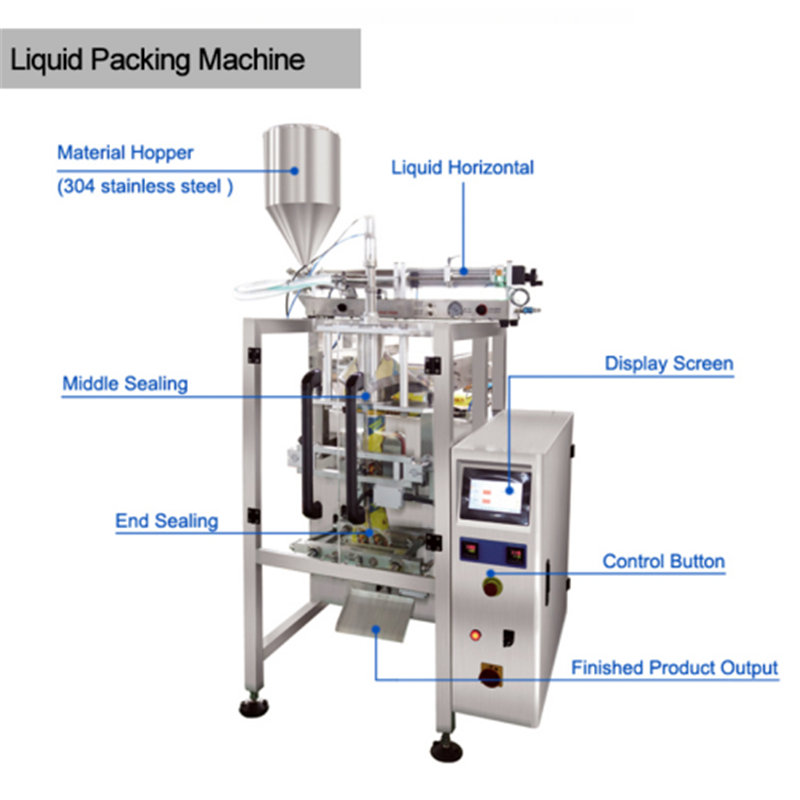

| Install the Film |
Dosing by Pump |
|
Bag Former, Sealing, Cutting.
Operate by Touch Screen
|
Electrical Box |
